Electric wafer butterfly valve


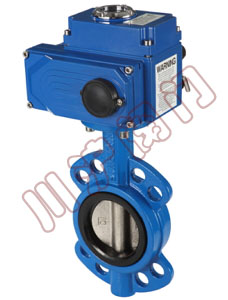

Electric wafer butterfly valve	Electric wafer butterfly valve structure

1.Electric wafer butterfly valve Product Overview

Electric wafer butterfly valve is composed of high precision electric actuator and wafer type butterfly valve, actuator with integrated structure, switch input voltage AC220V, output passive contact signal (or switch position signal), adjustable input (DC4-20mA or DC1-5V) control signal and single-phase power can control the operation, electric butterfly valve has strong function, small volume, light and pleasant, reliable performance, simple matching, large flow capacity, particularly suitable for medium thick, containing particles, fiber nature of the occasion. Electric butterfly valve can be widely applied to the process of food industry, environmental protection, light industry, petroleum, chemical industry, papermaking, teaching equipment, electric power and other industries in the automatic control system.

2.Electric wafer butterfly valve Main technical parameters

DN(mm)	50～1200
PN	PN0.6、1.6、2.5MPa
Connection form	Wafer
Valve plate form	Vertical plate
Flow characteristics	Quick approximation type
Range of motion	0～90°
Amount of leakage	By GB/T4213-92, 10-4, soft seal for the Kv values: zero leakage
Basic error	±2.5%
Backlash	±2.5%
Dead zone	1% (Adjustable)
Adjustable range	50:1

3.Electric thin ball valve Performance of electric actuator

Actuator type	CH series actuators	HQ series actuators
Power supply voltage	220V standard AC single-phase optional: 110V AC, 380/440V AC, 24V/110V/220V single-phase three-phase AC
Output torque	50N·M～2000N·M	50N·M～3000N·M
Range of motion	0～90° 0～360°	0～90°、0°～270°
Control mode	The switch position lamp (two control switches), passive contact signal, 1/5K, intelligent adjustment potentiometer (4 ~ 20mA analog signal control)
Movement time	15s/30s/60s	18S～112S
Protector	Overheating protection	Built in overheating protection, overload protection
Environmental temperature	-30°～60°	-20℃～+70℃
Manual operation	handle	The mechanical clutch mechanism, with hand wheel operation
Mechanical limit	Electrical, mechanical double limit	2 external adjustment bolt
Protection grade	IP65	IP65、IP67、IP68
Explosion-proof grade	No explosion	ExdⅡ BT4,ExdⅡ CT6
Position measurement	Optional switch or a potentiometer	Potentiometer, proportional control unit
Drive motor	8W/E	The squirrel cage asynchronous motor
Line interface	PE1/2 "into the wire lock	2个 PF 3/4"
Shell material	Aluminium alloy	Aluminum bronze, steel, aluminum alloy, polycarbonate
Outer coating	Dry powder, epoxy polyester, strong anti-corrosion function
Using electric brake lines and unique, high positioning accuracy, sensitive actuating mechanism, start and stop quickly, stable running. Also has the characteristics of anti-jamming, anti surge voltage, anti breakdown ability

4.Electric thin ball valve Valve performance specification

DN(mm)		DN15-150
PN	PN(MPa)	1.6	2.5	4.0	6.4
Test pressure	Strength test	15.0	24.0	37.5	48.0
	Seal test	11.0	17.6	27.5	35.2
	Low pressure air test	0.5～0.7
Applicable medium	Water, oil, steam, acid class (temperature ≤ 200 ℃), acetic acid (temperature ≤ 200 ℃)

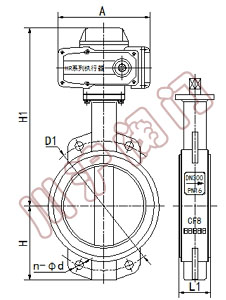

5.Electric wafer butterfly valve Dimension

DN	main dimension					flange dimension
	D973H/F		D971F/X		H1	1.0MPa		1.6MPa		2.5MPa
	L1	H	L2	H	H1	K	n-Фd	K	n-Фd	K	n-Фd
50	43	112	43	63	530	125	4-18	125	4-18	125	4-18
65	46	115	46	70	530	145	4-18	145	4-18	145	8-18
80	46	120	46	83	565	160	4-18	160	8-18	160	8-18
100	52	138	52	105	600	180	8-18	180	8-18	190	8-22
125	56	164	56	115	640	210	8-18	210	8-18	220	8-26
150	56	175	56	137	705	240	8-22	240	8-22	250	8-26
200	60	200	60	164	775	295	8-22	295	12-22	310	12-26
250	68	243	68	206	945	350	12-22	355	12-26	370	12-30
300	78	250	78	230	1070	400	12-22	410	12-26	430	16-30
350	78	280	78	248	1140	460	16-22	470	12-26	490	16-33
400	102	305	102	289	1210	515	16-26	525	16-26	550	16-36
450	114	350	114	320	1335	565	20-26	585	16-30	600	20-36
500	127	380	127	343	1415	620	20-26	650	20-30	660	20-36
600	154	445	154	413	1605	725	20-30	770	20-33	770	20-39
700	165	480	165	478	1844	840	24-30	840	24-36	875	24-42
800	190	530	190	525	2040	950	24-33	950	24-39	990	24-48
900	203	580	203	585	2255	1050	28-33	1050	28-39	1090	28-48
1000	216	650	216	640	2380	1160	28-36	1170	28-42	1210	28-56
1200	254	760	254	755	2640	1380	32-39	1390	32-48	1420	32-56
