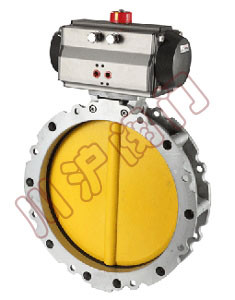

BLF Pneumatic powder butterfly valve

Pneumatic powder butterfly valve Pneumatic powder butterfly valve
Pneumatic powder butterfly valve Pneumatic powder butterfly valve

1. Pneumatic powder butterfly valve¡¡Product overview

¡¡¡¡BLF series butterfly valve is automatic control valves developed specifically for powder/granule material for products.The valve body adopts lightweight high-pressure cast aluminum alloy, the butterfly plate is lined with cored steel wear-resistant polymeric material,and the rubber sealing ring formed of soft sealing make it very suitable for all kinds of powder/particle materials applications,especially for resistance to abrasion of materials.In need of gravity blanking or pneumatic conveying of powder/particle material handing system,BLF butterfly valves are mounted on the hopper,silo,screw conveyor outlet and a pneumatic duct.

2.Pneumatic powder butterfly valve Main technical parameters

Model BLF
DN(mm) DN100-DN400
PN(Mpa) 0.6-1.6
Main parts materials Body aluminum alloy,
plate wear-resistant polymeric material
Sealing ring NBR
Applicable medium Cement, mud, powder
Applicable temperature(¡æ) -15--100
Pneumatic actuator Model CP and AT series
Air pressure(Mpa) 0.4-0.7

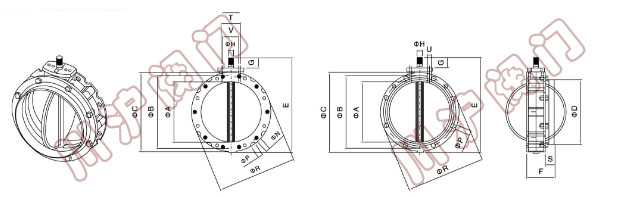

3.Pneumatic powder butterfly valve BL1F single flange Structure size

Pneumatic powder butterfly valve Structure size
ÐͺŠ¦ÕA ¦ÕB ¦ÕC ¦ÕD E F G ¦ÕH ¦ÕH Aperture * number ¦ÕP Outer groove diameter * number ¦ÕR S T U V Z KG
BL1F100 95 180 220 105 250 115 35 22¡Á19 14¡Á4 20¡Á4 220 40 80 M12 50 M10 4
BL1F150 150 200 228 163 290 115 35 22¡Á19 14¡Á4 20¡Á4 228 40 80 M12 50 M10 5
BL1F200 200 250 278 213 340 115 35 22¡Á19 14¡Á4 20¡Á4 278 40 80 M12 50 M10 6.5
BL1F250 250 300 328 263 390 115 35 22¡Á19 14¡Á8 20¡Á8 328 40 80 M12 50 M10 7.5
BL1F300 300 350 378 313 440 115 35 22¡Á19 14¡Á8 20¡Á16 378 40 80 M12 50 M10 9
BL1F350 350 400 440 363 530 123 50 28¡Á25 14¡Á8 20¡Á8 440 40 80 M12 50 M10 16
BL1F400 400 470 530 413 580 123 50 28¡Á25 14¡Á8 20¡Á16 530 40 80 M12 50 M10 20.5

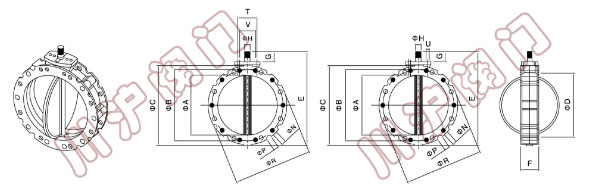

4.Pneumatic powder butterfly valve BL2F double flange Structure size

Pneumatic powder butterfly valve Structure size
ÐͺŠ¦ÕA ¦ÕB ¦ÕC ¦ÕD E F G ¦ÕH ¦ÕH Aperture * number ¦ÕP Outer groove diameter * number ¦ÕR S T U V Z KG
BL2F100 95 180 220 - 250 77 35 22¡Á19 14¡Á4 20¡Á4 220 - 80 M12 50 M10 4
BL1F150 150 200 228 - 290 77 35 22¡Á19 14¡Á4 20¡Á4 228 - 80 M12 50 M10 5
BL2F200 200 250 278 - 340 77 35 22¡Á19 14¡Á4 20¡Á4 278 - 80 M12 50 M10 6.5
BL2F250 250 300 328 - 390 115 35 22¡Á19 14¡Á8 20¡Á8 328 - 80 M12 50 M10 7.5
BL1F300 300 350 378 - 440 115 77 22¡Á19 14¡Á8 20¡Á16 378 - 80 M12 50 M10 9
BL2F350 350 400 440 - 530 85 50 28¡Á25 14¡Á8 20¡Á8 440 - 80 M12 - - 16
BL2F400 400 470 530 - 580 85 50 28¡Á25 14¡Á8 20¡Á16 530 - 80 M12 - - 20.5
