新产品上线-离合式手动机构

• 离合式手动机构主要应用Main application manual clutch

公司产品应用于石油，化工，医药，水处理，电厂，核电等场所，用于90°开启的球阀，蝶阀，旋塞阀等阀门配套使用，我公司所 供应的手动机构还可以根据客户使用要求对产品的速比，使用温度，防护等级，防腐等级进行调整定制。公司立足国内，面向国 际市场，客户主要来自中东、欧美等国外知名阀门企业。

The CHUANHU VALVE company's products are used in petroleum，chemical，pharmaceutical，water treatment，power plants，nuclear power and other places，for 90 degrees open ball valves，butterfly valves，plug valves and other valves supporting the use of the company's supply of manual clutch can also be used according to customer requirements on the product speed ratio，use temperature，protection level，anti-corrosion level. Adjust customization.The company is based on domestic and international markets，Customers mainly from the Middle East，Europe and the United States and other well-known foreign valve enterprises

• 产品主要用途 Main uses of products

本手动机构与气动执行器装配联合使用，用于90°开启的蝶阀、球阀等实现手动或气动驱动。

The manual clutch is combined with the pneumatic actuator assembly to realize manual or pneumatic drive for butterfly valves，ball valves，etc.which are opened at90° degrees.

• 产品特点 Characteristic

1.体积小、重量轻、设计合理、样式新颖。
2.产品系列化，输出扭矩与气动装置各种阀门匹配。
3.蜗轮连接内孔有相隔90°的两个键槽，以便用户根据需要选择装置同阀门的相对位置。
4.提起限位拉环，旋转偏心装置90°限位销自动限位，实现气动，反之实现手动。
5.产品出厂时，装有专用润滑脂，与阀装配后，整体密封防尘防水防护等级IP65，IP67，IP68可选。

1.It is small in size，light in weight and reasonable in design
2.Products are serialized and output torque is matched with pneumatic devices
3.Turbine connection holes have two keyways 90 degrees apart so that users can choose the relative position of the device with the valve according to their needs
4.Lifting the limit puling ring，rotating the eccentric device 90 degree limit pin automatic limit，to achieve pneumatic，otherwise to achieve manual
5.Product factory，equipped with special grease，and valve assembly，the overall seal，dust-proof，waterproot，protection grade IP65，IP67.IP68 optional

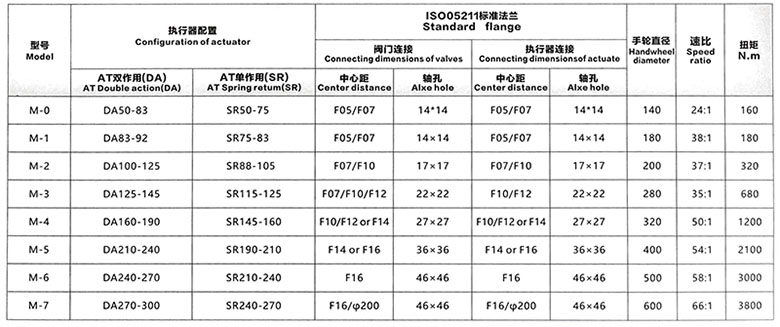

• 技术参数Technical parameters

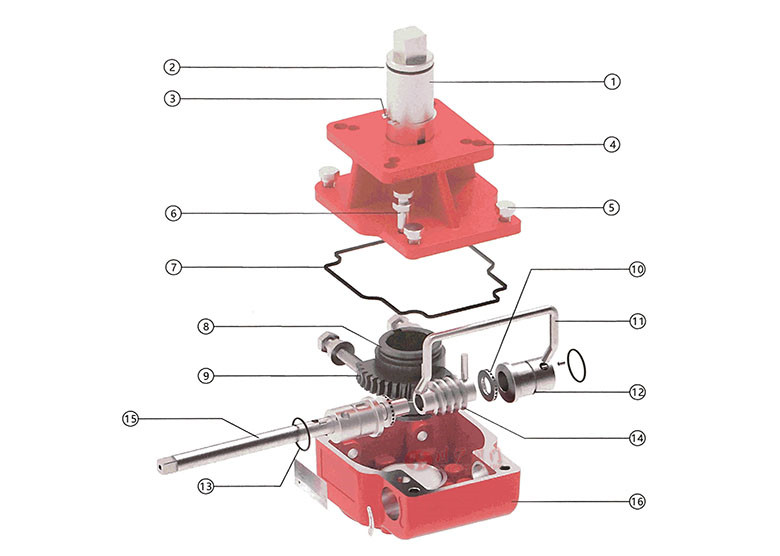

• 结构图 Structural drawing

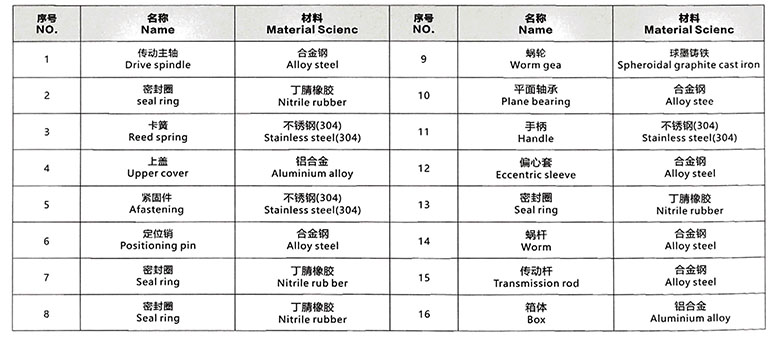

• 主要零部件材料 Main components and materials

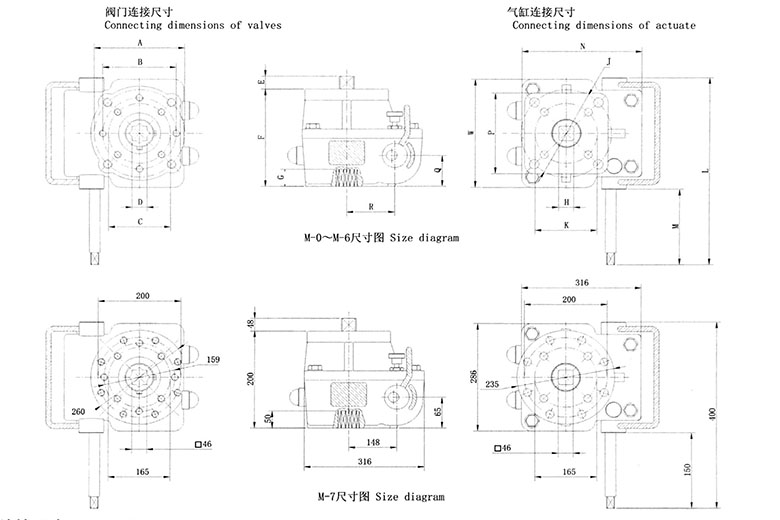

• 连接尺寸图 connection size pic

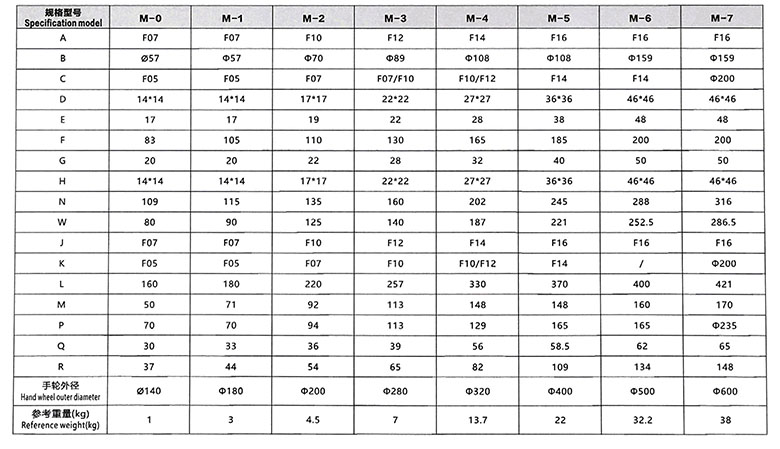

• 连接尺寸 connection size

本离合式手动机构为上海川沪阀门新研制产品，是在老产品铸铁手轮机构上，采用新型的铸造铝合金工艺，具体结构紧凑、重量轻、安装方便等特点，并且手轮盘大、操作方便，提升了现场操作的实用性。有需要可以联系我司021-51863046

The clutch type manual mechanism is a newly developed product of Shanghai Chuanhu valve. It is a new cast aluminum alloy process used on the old cast iron handwheel mechanism. It has the characteristics of compact structure, light weight, convenient installation, large hand wheel disc and convenient operation, which improves the practicability of field operation. If you need, please contact our company 021-51863046
