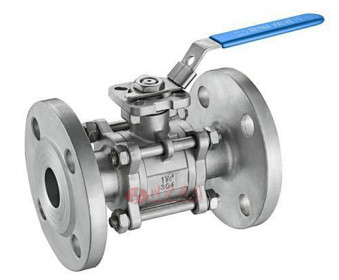

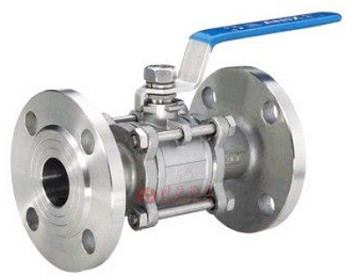

高平台3片式法兰球阀|Q41F球阀
|
|
高平台3片式法兰球阀 |
3片式法兰球阀 |
一、高平台3片式法兰球阀 产品概述
标准:
设计标准:ANSI B16.34;BS5351;DIN3337
结构长度:ANSI B16.10;DIN3202 F1,F4/F5;GB/T 12221;JIS B2002
法兰标准:ANSI B16.5;DIN 2632/2633&DIN 2634/2635;JB/T 79;JIS B2212
检测标准:MSS SP-100;EN 12266;API 598;ISO 5208
平台标准:ISO 5211
阀门标识系统:MSS SP-25
材料标准:EN 10204/DIN 50.049-3.1B
规格:
工作温度:-20℃ ~200℃ (-4℉~392℉)
压力等级:DIN PN16-40 / ANSI 150Lb 300Lb / JIS 10K
尺寸:DN15-DN200(1/2 “-8”)
材质:WCB,CF8,CF8M,CF3M等
二 、高平台3片式法兰球阀 产品特点
1. ISO 5211 直接安装平台
2. 防静电装置
3. 阀杆防脱设计
4. 硅溶胶熔模铸造工艺
5. 钢球有压力平衡孔
6. 全通径
7. 锁紧装置可用

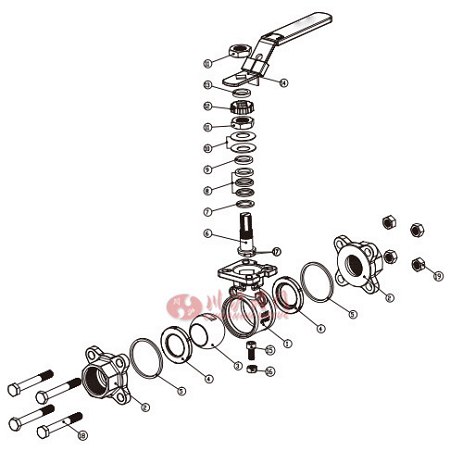

三、高平台3片式法兰球阀 主要零部件名称及材料
序号 |
名称 |
材质表 |
|
NO. |
PART NAME |
MATERIAL |
1 |
阀体Body |
A351 CF8 A351 CF8M A216WCB |
2 |
阀盖Bonnet |
A351 CF8 A351 CF8M A216WCB |
3 |
球体Ball |
SUS304/SUS316 |
4 |
阀座Seat |
PTFE/RPTFE/PPUPEEK |
5 |
密封线Gasket |
PTFE/RPTFE |
6 |
阀杆Stem |
SUS304/SUS316 |
7 |
减磨垫 Stem Washer |
PTFE/RPTFE |
8 |
V型填料 V-Ring Packing |
PTFE/RPTFE |
9 |
压盖Gland |
SUS304 |
10 |
碟簧 Belleville Washer |
SUS301 |
11 |
阀杆螺母Stem Nut |
SUS304 |
12 |
防松盖 Stop Lock Cap |
SUS304 |
13 |
塾片Washer |
SUS304 |
14 |
手柄Handle |
SUS304 |
15 |
定位螺钉Stop Bolt |
SUS304 |
16 |
螺母Nut |
SUS304 |
17 |
防静电弹簧 Anti Static Device |
SUS304 |

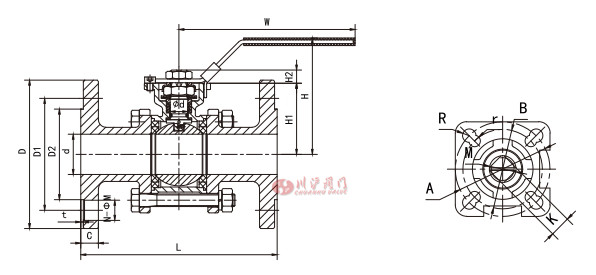

四、高平台3片式法兰球阀 主要连接尺寸
1.高平台3片式法兰球阀国标PN16/PN40连接尺寸
|
高平台3片式法兰球阀 |
Size |
C |
L |
H |
H1 |
H2 |
W |
D |
D1 |
D2 |
t |
C |
N-OM |
d |
A |
B |
R |
r |
K |
Nm |
Cv |
IS05211 |
1/2" |
DN15 |
15 |
75 |
77 |
40.5 |
9 |
110 |
95 |
65 |
45 |
2 |
16 |
4-014 |
12 |
42 |
36 |
3 |
3 |
9 |
4 |
3.5 |
F03/F04 |
3/4" |
DN20 |
20 |
80 |
81.5 |
45 |
9 |
120 |
105 |
75 |
58 |
2 |
18 |
4-014 |
12 |
42 |
36 |
3 |
3 |
9 |
4 |
7.2 |
F03/F04 |
1" |
DN25 |
25 |
90 |
90 |
52 |
11 |
130 |
115 |
85 |
68 |
2 |
18 |
4-014 |
14 |
50 |
42 |
3.5 |
3 |
11 |
7.5 |
12.3 |
F04/F05 |
1-1/4" |
DN32 |
32 |
110 |
94.5 |
56.5 |
11 |
140 |
140 |
100 |
78 |
2 |
18 |
4-018 |
14 |
50 |
42 |
3.5 |
3 |
11 |
12 |
20.1 |
F04/F05 |
1-1/2" |
DN40 |
38 |
120 |
104 |
69 |
15 |
175 |
150 |
110 |
88 |
3 |
18 |
4-018 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
20.5 |
28.3 |
F05/F07 |
2" |
DN50 |
49 |
140 |
112 |
77 |
15 |
175 |
165 |
125 |
102 |
3 |
20 |
4-018 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
26 |
47.1 |
F05/F07 |
2-1/2" |
DN65 |
64 |
185 |
123 |
90 |
15 |
220 |
185 |
145 |
122 |
3 |
20 |
4-018 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
44 |
75.4 |
F05/F07 |
3" |
DN80 |
76 |
205 |
144.5 |
108 |
18 |
270 |
200 |
160 |
138 |
3 |
20 |
8-018 |
22 |
102 |
70 |
5.5 |
4.5 |
17 |
68 |
108 |
F07/F10 |
4" |
DN100 |
100 |
240 |
170 |
123 |
18 |
310 |
220 |
180 |
158 |
3 |
20 |
8-018 |
22 |
102 |
70 |
5.5 |
4.5 |
17 |
89 |
197 |
F07/F10 |
2.高平台3片式焊接球阀美标150lb连接尺寸
|
高平台3片式法兰球阀 |
Size |
C |
L |
H |
H1 |
H2 |
W |
D |
D1 |
D2 |
t |
C |
N-OM |
d |
A |
B |
R |
r |
K |
Nm |
Cv |
IS05211 |
1/2" |
DN15 |
15 |
108 |
77 |
40.5 |
9 |
110 |
90 |
60.5 |
35 |
2 |
10 |
4-016 |
12 |
42 |
36 |
3 |
3 |
9 |
4 |
3.5 |
F03/F04 |
3/4" |
DN20 |
20 |
117 |
81.5 |
45 |
9 |
120 |
100 |
70 |
43 |
2 |
11 |
4-016 |
12 |
42 |
36 |
3 |
3 |
9 |
4 |
7.2 |
F03/F04 |
1" |
DN25 |
25 |
127 |
90 |
52 |
11 |
130 |
110 |
79.5 |
51 |
2 |
12 |
4-016 |
14 |
50 |
42 |
3.5 |
3 |
11 |
7.5 |
12.3 |
F04/F05 |
1-1/4" |
DN32 |
32 |
140 |
94.5 |
56.5 |
11 |
140 |
115 |
89 |
63.5 |
2 |
13 |
4-016 |
14 |
50 |
42 |
3.5 |
3 |
11 |
12 |
20.1 |
F04/F05 |
1-1/2" |
DN40 |
38 |
165 |
104 |
69 |
15 |
175 |
125 |
98.5 |
73 |
2 |
15 |
4-016 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
20.5 |
28.3 |
F05/F07 |
2" |
DN50 |
49 |
178 |
112 |
77 |
15 |
175 |
150 |
120. |
392 |
2 |
16 |
4-019 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
26 |
47.1 |
F05/F07 |
2-1/2" |
DN65 |
64 |
190 |
123 |
90 |
15 |
220 |
180 |
140 |
105 |
2 |
18 |
4-019 |
18 |
70 |
50 |
4.5 |
3.5 |
14 |
44 |
75.4 |
F05/F07 |
3*' |
DN80 |
76 |
203 |
144.5 |
108 |
18 |
270 |
190 |
152. |
)127 |
2 |
19 |
4-019 |
22 |
102 |
70 |
5.5 |
4.5 |
17 |
68 |
108 |
F07/F10 |
4” |
DN100 |
100 |
229 |
170 |
123 |
18 |
310 |
230 |
190. |
>157 |
2 |
24 |
8-019 |
22 |
102 |
70 |
5.5 |
4.5 |
17 |
89 |
197 |
F07/F10 |
