一、高平台法兰球阀 产品概述
标准:
设计标准:ANSI B16.34;BS5351;DIN3337
结构长度:ANSI B16.10;DIN3202 F1,F4/F5;GB/T 12221;JIS B2002
法兰标准:ANSI B16.5;DIN 2632/2633&DIN 2634/2635;JB/T 79;JIS B2212
检测标准:MSS SP-100;EN 12266;API 598;ISO 5208
平台标准:ISO 5211
阀门标识系统:MSS SP-25
材料标准:EN 10204/DIN 50.049-3.1B
规格:
工作温度:-20℃ ~200℃ (-4℉~392℉)
压力等级:DIN PN16-40 / ANSI 150Lb 300Lb / JIS 10K
尺寸:DN15-DN200(1/2 “-8”)
材质:WCB,CF8,CF8M,CF3M等
二 、高平台法兰球阀 产品特点
1. ISO 5211 直接安装平台
2. 防静电装置
3. 阀杆防脱设计
4. 硅溶胶熔模铸造工艺
5. 钢球有压力平衡孔
6. 全通径
7. 锁紧装置可用

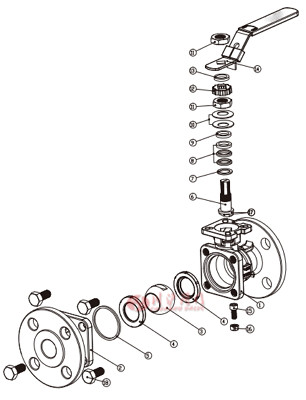

三、高平台法兰球阀 主要零部件名称及材料
序号 |
名称 |
材质表 |
数量 |
|
NO. |
PART NAME |
MATERIAL |
QTY |
1 |
阀体Body |
A351 CF8 A351 CF8M A216WCB |
1 |
2 |
阀盖Bonnet |
A351 CF8 A351 CF8M A216WCB |
2 |
3 |
球体Ball |
SUS304/SUS316 |
1 |
4 |
阀座Seat |
PTFE/RPTFE/PPL/PEEK |
2 |
5 |
密封线Gasket |
PTFE/RPTFE |
2 |
6 |
阀杆 Stem |
SUS304/SUS316 |
1 |
7 |
减磨垫 Stem Washer |
PTFE/RPTFE |
1 |
8 |
V型填料 V-Ring Packing |
PTFE/RPTFE |
* |
9 |
压盖Gland |
SUS304 |
1 |
10 |
碟簧 Belleville Washer |
SUS301 |
2 |
11 |
阀杆螺母Stem Nut |
SUS304 |
2 |
12 |
防松盖 Stop Lock Cap |
SUS304 |
1 |
13 |
垫片Washer |
SUS304 |
1 |
14 |
手柄Handle |
SUS304 |
1 |
15 |
定位螺钉Stop Bolt |
SUS304 |
1 |
16 |
螺母Nut |
SUS304 |
1 |
17 |
防静电弹簧 Anti Static Device |
SUS304 |
2 |
18 |
螺栓Bolt |
SUS304 |
* |

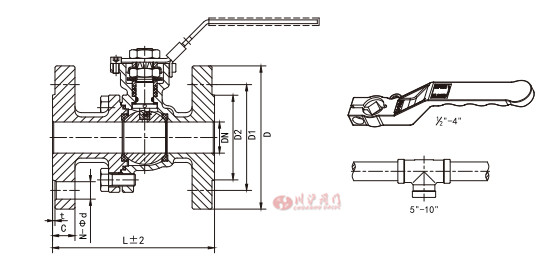

四、高平台法兰球阀 主要连接尺寸
|
国标高平台法兰球阀 |
1.高平台法兰球阀国标PN16/PN25连接尺寸(短规格)
Size |
L |
D |
D1 |
D2 |
t |
C |
N-Od |
1/2" |
DN15 |
115 |
95 |
65 |
45 |
2 |
16 |
4-014 |
3/4" |
DN20 |
120 |
105 |
75 |
58 |
2 |
18 |
4-014 |
1" |
DN25 |
125 |
115 |
85 |
68 |
2 |
18 |
4-014 |
1-1/4" |
DN32 |
130 |
140 |
100 |
78 |
2 |
18 |
4-018 |
1-1/2" |
DN40 |
140 |
150 |
110 |
88 |
3 |
18 |
4-018 |
2" |
DN50 |
150 |
165 |
125 |
102 |
3 |
20 |
4-018 |
2-1/2" |
DN65 |
170 |
185 |
145 |
122 |
3 |
20 |
4-018 |
3" |
DN80 |
180 |
200 |
160 |
138 |
3 |
20 |
8-018 |
4" |
DN100 |
190 |
220 |
180 |
158 |
3 |
20 |
8-018 |
5" |
DN125 |
325 |
250 |
210 |
188 |
3 |
22 |
8-018 |
6" |
DN150 |
350 |
285 |
240 |
212 |
3 |
22 |
8-022 |
8" |
DN200 |
400 |
340 |
295 |
268 |
3 |
24 |
12-022 |
10" |
DN250 |
450 |
405 |
355 |
320 |
3 |
26 |
12-026 |
2.高平台法兰球阀国标PN40连接尺寸(短规格)
Size |
L |
D |
D1 |
D2 |
t |
C |
N-0d |
1/2" |
DN15 |
115 |
95 |
65 |
45 |
2 |
16 |
4-014 |
3/4" |
DN20 |
120 |
105 |
75 |
58 |
2 |
18 |
4-014 |
1" |
DN25 |
125 |
115 |
85 |
68 |
2 |
18 |
4-014 |
1-1/4" |
DN32 |
130 |
170 |
100 |
78 |
2 |
18 |
4-018 |
1-1/2" |
DN40 |
140 |
150 |
110 |
88 |
3 |
18 |
4-018 |
2" |
DN50 |
150 |
165 |
125 |
102 |
3 |
20 |
4-018 |
2-1/2" |
DN65 |
170 |
185 |
145 |
122 |
3 |
22 |
8-018 |
3" |
DN80 |
180 |
200 |
160 |
138 |
3 |
24 |
8-018 |
4" |
DN100 |
190 |
235 |
190 |
162 |
3 |
24 |
8-022 |
5" |
DN125 |
325 |
270 |
220 |
188 |
3 |
26 |
8-026 |
6" |
DN150 |
350 |
300 |
250 |
218 |
3 |
28 |
8-026 |
8" |
DN200 |
400 |
375 |
320 |
285 |
3 |
34 |
12-030 |
10" |
DN250 |
450 |
450 |
385 |
345 |
3 |
38 |
12-030 |
3.高平台3片式焊接球阀美标150lb连接尺寸
|
美标高平台法兰球阀 |
Size |
L |
D |
D1 |
D2 |
t |
C |
N-Od |
1/2" |
DN15 |
108 |
90 |
60.5 |
35 |
2 |
10 |
4-016 |
3/4” |
DN20 |
117 |
100 |
70 |
43 |
2 |
11 |
4-016 |
1" |
DN25 |
127 |
110 |
79.5 |
51 |
2 |
12 |
4-016 |
1-1/4" |
DN32 |
140 |
115 |
89 |
63.5 |
2 |
13 |
4-016 |
1-1/2" |
DN40 |
165 |
125 |
98.5 |
73 |
2 |
15 |
4-016 |
2" |
DN50 |
178 |
150 |
120.5 |
92 |
2 |
16 |
4-019 |
2-1/2" |
DN65 |
190 |
180 |
140 |
105 |
2 |
18 |
4-019 |
3" |
DN80 |
203 |
190 |
152.5 |
127 |
2 |
19 |
4-019 |
4” |
DN100 |
229 |
230 |
190.5 |
157 |
2 |
24 |
8-019 |
5" |
DN125 |
356 |
255 |
216 |
186 |
2 |
24 |
8-022 |
6" |
DN150 |
394 |
280 |
241.5 |
216 |
2 |
26 |
8-022 |
8" |
DN200 |
457 |
345 |
298.5 |
267 |
2 |
29 |
8-022 |
10" |
DN250 |
533 |
405 |
362 |
324 |
2 |
31 |
12-025 |
4.高平台3片式焊接球阀美标300lb连接尺寸
Size |
L |
D |
D1 |
D2 |
t |
C |
N-Od |
1/2" |
DN15 |
140 |
95 |
66.5 |
35 |
2 |
15 |
4-016 |
3/4" |
DN20 |
152 |
115 |
82.5 |
43 |
2 |
16 |
4-019 |
1" |
DN25 |
165 |
125 |
89 |
51 |
2 |
18 |
4-019 |
1-1/4" |
DN32 |
178 |
135 |
98.5 |
63.5 |
2 |
19 |
4-019 |
1-1/2" |
DN40 |
190 |
155 |
114.5 |
73 |
2 |
21 |
4-022 |
2" |
DN50 |
216 |
165 |
127 |
92 |
2 |
23 |
8-019 |
2-1/2" |
DN65 |
241 |
190 |
149 |
105 |
2 |
26 |
8-022 |
3" |
DN80 |
282 |
210 |
168.5 |
127 |
2 |
29 |
8-022 |
4” |
DN100 |
305 |
255 |
200 |
157 |
2 |
32 |
8-022 |
5” |
DN125 |
381 |
280 |
235 |
186 |
2 |
35 |
8-022 |
6" |
DN150 |
403 |
320 |
267 |
216 |
2 |
37 |
12-022 |
8" |
DN200 |
502 |
380 |
330 |
267 |
2 |
42 |
12-022 |
10" |
DN250 |
568 |
445 |
387.5 |
324 |
2 |
48 |
16-029 |
