Electric thin ball valve|Electric ultra thin stainless steel ball valve

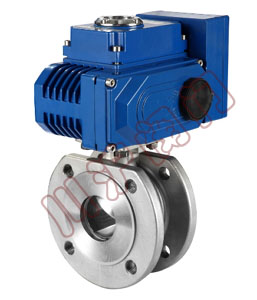

Electric thin ball valve	Electric thin ball valve Structure diagram

1.Electric thin ball valve Product overview

Electric ultra thin ball valve is electric rotary actuators and the thin ball valve. Electric actuator can be switching and regulation, electric thin valve input and output signal 4-20mA. Ultrathin ball valve, valve material selection according to customer service condition, the valve body material can be cast steel and stainless steel. Electric ultra thin ball valve has the advantages of compact structure, light weight, electric actuator fine small, stable performance characteristics. Electric ultra thin ball valve according to different parameters, selection of different, can be electric ball valve, cast thin ultra thin stainless steel ball valve, electric motor switch ultra-thin ball valves, electric control type ultra-thin ball valve.

2.Electric thin ball valve Main technical parameters

DN	DN10～150mm
PN	PN1.6 2.5 4.0 6.4 MPa
Leakage	Soft seal zero leakage	Metal hard seal: 10-5 ≤ rated flow
Flow characteristics	Quick opening characteristics
Adjustable range	DN10-80	DN100-150
Adjustable range	250:1	350:1
Valve Body	Integral forging, integral casting
Connection form	Ultrathin flanged, wafer type
Spool form	"O" type ball valve
Packing type	V PTFE packing, flexible graphite packing etc.
Intrinsic error	±1%
Dead zone	≤1%
Return difference	≤1%
Suitable temperature	sea
Suitable temperature	PTFE≤180℃、PPL≤300℃、Metal Seal≤450℃
Actuator	With CH, CHV, HQ, 361RS series of electric actuators

3.Electric thin ball valve Performance of electric actuator

Actuator type	CH series actuators	HQ series actuators
Power supply voltage	220V standard AC single-phase optional: 110V AC, 380/440V AC, 24V/110V/220V single-phase three-phase AC
Output torque	50N·M～2000N·M	50N·M～3000N·M
Range of motion	0～90° 0～360°	0～90°、0°～270°
Control mode	The switch position lamp (two control switches), passive contact signal, 1/5K, intelligent adjustment potentiometer (4 ~ 20mA analog signal control)
Movement time	15s/30s/60s	18S～112S
Protector	Overheating protection	Built in overheating protection, overload protection
Environmental temperature	-30°～60°	-20℃～+70℃
Manual operation	handle	The mechanical clutch mechanism, with hand wheel operation
Mechanical limit	Electrical, mechanical double limit	2 external adjustment bolt
Protection grade	IP65	IP65、IP67、IP68
Explosion-proof grade	No explosion	ExdⅡ BT4,ExdⅡ CT6
Position measurement	Optional switch or a potentiometer	Potentiometer, proportional control unit
Drive motor	8W/E	The squirrel cage asynchronous motor
Line interface	PE1/2 "into the wire lock	2个 PF 3/4"
Shell material	Aluminium alloy	Aluminum bronze, steel, aluminum alloy, polycarbonate
Outer coating	Dry powder, epoxy polyester, strong anti-corrosion function
Using electric brake lines and unique, high positioning accuracy, sensitive actuating mechanism, start and stop quickly, stable running. Also has the characteristics of anti-jamming, anti surge voltage, anti breakdown ability

4.Electric thin ball valve Valve performance specification

DN(mm)		DN15-150
PN	PN(MPa)	1.6	2.5	4.0	6.4
Test pressure	Strength test	15.0	24.0	37.5	48.0
	Seal test	11.0	17.6	27.5	35.2
	Low pressure air test	0.5～0.7
Applicable medium	Water, oil, steam, acid class (temperature ≤ 200 ℃), acetic acid (temperature ≤ 200 ℃)

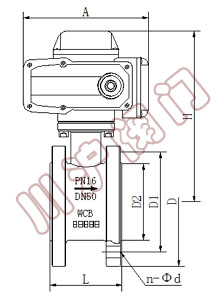

5.Electric thin ball valve Dimension

DN(mm)	L	D	D1	D2	n-Φd	H（CH）	H（HQ）	A（CH）	A（HQ）
15	35	95	65	45	4-M12	291	350	155.2	150
20	38	105	75	55	4-M12	296	360	155.2	150
25	42	115	85	65	4-M12	301	365	155.2	150
32	50	135	100	78	4-M16	311	380	195	180
40	60	145	110	85	4-M16	318	400	195	180
50	70	160	125	100	4-M16	326	420	234	200
65	95	180	145	120	4-M16	336	430	234	200
80	118	195	160	135	8-M16	363	470	271	220
100	140	215	180	155	8-M16	383	480	325	230
125	175	245	210	185	8-M16	403	510	414	230
150	210	280	240	210	8-M16	418	510	420	230
