Pneumatic control ball valve|Pneumatic V type ball valve


Pneumatic control ball valve	Pneumatic control ball valve Structure

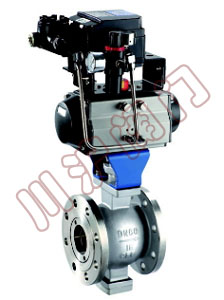

1.Pneumatic control ball valve Product overview

Pneumatic control ball valve is regulated by a single action or double acting pneumatic actuator and flange type V type ball valve, and is equipped with electric - valve positioner YT locator and can be equipped with Siemens smart positioners. By controlling the signal of 4-20mA positioner to achieve proportional control valve. Ball valve spool design with a V-notch special shape, with a precise closure properties and control functions for a variety of control applications, compact structure, small size and so on.
Because it is no gap between the rotary valve and seat, and therefore have a lot of shear force and self-cleaning properties, so Pneumatic control ball valve suitable for containing fibrous or suspension of tiny solid particles and solid granular control. It can be widely used in petroleum, chemical, paper, chemical, electric power, metallurgy, pharmaceutical, environmental protection and other industrial sectors of the automatic control system.

2.Pneumatic control ball valve Main technical parameters

DN	25	32	40	50	65	80	100	125	150	200	250	300	350	400
Rated flow coefficient Cv	32	43	78	90	160	250	360	610	1120	1850	2950	3700	7195	11466
PN	PN1.6、2.5、4.0、6.4MPa
Strength Test	2.4～9.6MPa
Seal test	1.76～7.0MPa
Flow characteristics	Approximately equal percentage
The valve plate angle	0°～90°（Adjustable）
Allow leakage level	Soft Seal: zero leakage Hard seal: ≤ rated Cv × 0.001%				Soft seal: VI microbubbles grade metal seal: ≤ Rated CV × 0.065%
Action time（S/90°）	8.5～30				36～60
Adjustable ratio	250:1						300:1
Actuator Configuration	AT, AW series of single and double acting pneumatic actuators
Control Type	4～20mA

3.Pneumatic control ball valve Actuator Technical Data

Actuator Model	AT, AW series of single and double acting pneumatic actuators
Supply pressure	0.4～0.7MPa
Air Connection	G1/4"、G1/8"、G3/8"、G1/2"
Ambient temperature	-30～+70℃
Action	Single acting actuators: air-to-close (B) - loss of gas when the valve opening (FO); open air (K) - when the loss of gas valve closed (FC) Double-acting actuators: air-to-close (B) - when the loss of gas valve to keep (FL); open air (K) - when the loss of gas valve to keep (FL)
Accessories	Positioners, solenoid valve, air filter regulator, to secure his position valve, limit switch, valve position transmitter, hand wheel, etc.

4.Pneumatic control ball valve Performance Specifications

DN(mm)		DN15-300
PN	PN(MPa)	1.0	1.6	2.5	4.0	6.4
Test pressure	Strength Test	1.5	2.4	3.75	6.0	9.60
	Seal test	1.1	1.76	2.75	4.4	7.04
	Low air tightness test	0.5～0.7
For media	Water, oil, steam, nitric acid (temperature ≤ 200 ℃), acetic acid (temperature ≤ 200 ℃)

5.Pneumatic control ball valve Seat Selection

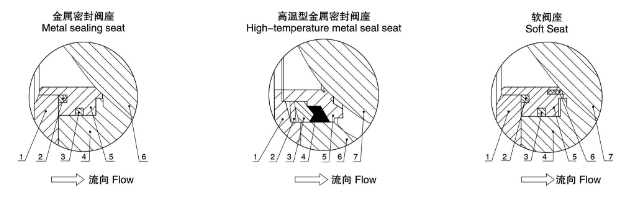

Pneumatic control ball valve Seat

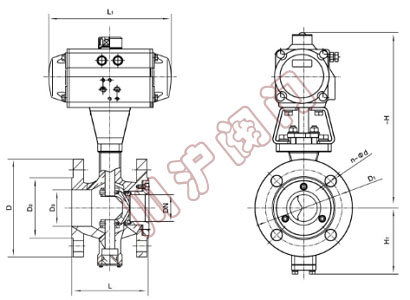

六、Pneumatic control ball valve Dimension

DN	L	L1	-H	H1	D	D1	D2	D3	C	f	n-Φd
25	62	159	260	87	115	85	65	38	16	2	4-Φ14
32	105	159	267	87	140	100	76	42	18	3	4-Φ18
40	114	211	292	87	150	110	84	50	18	3	4-Φ18
50	124	248	292	97	165	125	99	60	20	3	4-Φ18
65	145	269	327	112	185	145	118	75	20	3	4-Φ18
80	165	315	359	112	200	160	132	94	20	3	8-Φ18
100	194	345	359	122	220	180	156	110	22	3	8-Φ18
125	213	409	399	142	250	210	184	135	22	3	8-Φ18
150	229	438	461	165	285	240	211	165	24	3	8-Φ22
200	243	550	509	195	340	295	266	210	24	3	12-Φ22
250	297	633	603	237	405	355	319	260	26	3	12-Φ26
300	334	730	790	287	460	410	370	310	284	4	12-Φ26
350	414	1180	828	338	520	470	429	360	30	4	16-Φ26
