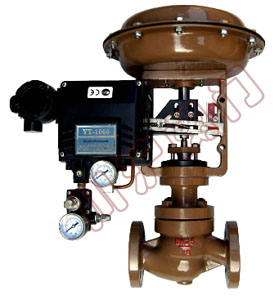

1.Pneumatic single seat control valve Product overview
Pneumatic diaphragm control valve with top guide structure, equipped with multi spring actuator, flow channel was streamlined S. Has the advantages of compact structure, light weight, flexible action, small pressure drop loss, valve capacity, flow characteristics of precision, convenient maintenance and so on, can be used in harsh working conditions. Particularly applicable to allow a small amount of leakage, the valve before and after the pressure is not the occasion. This series of products are the normal temperature, high temperature, low temperature, regulating off type, bellows seal type, jacket insulation type and other types of. Valve caliber range is DN20-300, a variety of grades suitable fluid temperature range of -196-+560 ¡æ. Leakage level IV, V, VI class. There is a straight line, the percentage of properties such as flow characteristics. A variety of different specifications are available.
2.Pneumatic single seat control valve Main parts materials
Parts Name |
Material |
Body |
WCB |
CF8 |
CF8M |
CF3M |
Seat |
304 |
304 |
316 |
316L |
Gasket |
PTFE |
Spool |
304 |
304 |
316 |
316L |
Guide sleeve |
304 |
304 |
316 |
316L |
Bonnet |
WCB |
CF8 |
CF8M |
CF3M |
Stem |
304 |
304 |
316 |
316L |
Packing |
PTFE |
Spring |
65Mn |
304 |
316 |
316L |
Screw nut |
304 |
304 |
316 |
316L |
3.Pneumatic single seat control valve Main technical parameters
DN£¨mm£© |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
Rated Flow
KV |
Line |
7.6 |
12.1 |
19.4 |
30.3 |
48.3 |
75.9 |
121 |
193.6 |
302.5 |
484 |
759 |
percentage |
6.9 |
11 |
17.6 |
27.5 |
44 |
69.3 |
110 |
176 |
275 |
440 |
693 |
Rated stroke L£¨mm£© |
16 |
25 |
40 |
60 |
PN£¨MPa£© |
1.6 2.5 4.0 6.4 10.0 |
Signal range Pr£¨KPa£© |
20-60¡¢20-100¡¢40-200¡¢60-100¡¢80-240 |
Air pressure Ps£¨MPa£© |
0.14¡¢0.25¡¢0.28¡¢0.40 |
4.Pneumatic single seat control valve Performance of pneumatic actuator
Model
|
ZHA/B-11
|
ZHA/B-22
|
ZHA/B-23
|
ZHA/B-34
|
ZHA/B-45
|
ZHA/B-56 |
stroke£¨mm£©
|
10
|
10¡¢16
|
16¡¢25
|
40
|
40¡¢60
|
100 |
Effective area£¨cm£©
|
200
|
350
|
350
|
560
|
960
|
1600 |
D1£¨mm£©
|
32
|
60
|
60
|
80
|
95
|
100 |
D2£¨mm£©
|
/
|
80
|
80
|
105
|
122
|
130 |
n-d
|
/
|
2-¦µ10
|
2-¦µ10
|
4 -¦µ12
|
4 -¦µ14
|
4 -¦µ18 |
M
|
M8
|
M8
|
M8
|
M12¡Á1.25
|
M16¡Á1.5
|
M20¡Á1.5 |
S£¨ZHA/ZHB£©mm
|
80/70 |
100/84 |
100/75 |
154/114 |
180/115 |
260/160 |
Air interface size
|
M10¡Á1 |
M12¡Á1.25 |
M16¡Á1.5 |
Air pressure
|
0.14¡¢0.25MPa |
Environmental temperature
|
-30~60oC |
Spring range |
0.02~0.10¡¢0.04~0.10¡¢0.08~0.24MPa |

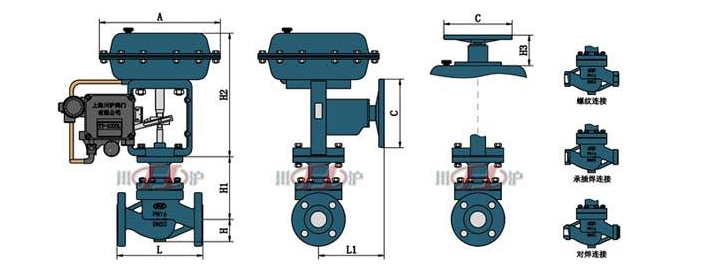

5.Pneumatic single seat control valve Dimension
DN |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
structure length
£¨L£© |
PN16/25 |
184 |
184 |
200 |
222 |
254 |
276 |
298 |
352 |
420 |
451 |
543 |
PN40 |
184 |
184 |
200 |
222 |
254 |
276 |
317 |
368 |
400 |
473 |
568 |
PN64¡¢100 |
206 |
210 |
251 |
251 |
286 |
311 |
337 |
394 |
500 |
508 |
610 |
H1 |
128 |
128 |
152 |
152 |
160 |
205 |
205 |
208 |
273 |
333 |
364 |
H2 |
298 |
298 |
298 |
298 |
298 |
380 |
380 |
380 |
510 |
510 |
510 |
H3 |
208 |
208 |
224 |
228 |
228 |
334 |
334 |
342 |
408 |
453 |
482 |
H4 |
338 |
338 |
402 |
402 |
405 |
627 |
628 |
635 |
698 |
702 |
728 |
H5 |
53 |
58 |
68 |
73 |
80 |
90 |
98 |
108 |
123 |
140 |
168 |
H6 |
180 |
180 |
180 |
180 |
180 |
236 |
236 |
236 |
310 |
310 |
310 |
A |
282 |
282 |
282 |
282 |
282 |
360 |
360 |
360 |
470 |
470 |
470 |
C |
220 |
220 |
220 |
220 |
220 |
270 |
270 |
270 |
320 |
320 |
320 |
L1 |
289 |
289 |
289 |
289 |
289 |
347 |
347 |
347 |
476 |
476 |
476 |
PN |
GB£º1.6¡¢2.5¡¢4.0¡¢6.4¡¢10.0MPa ANSI£º150¡¢300¡¢600LB JIS£º10¡¢20¡¢30¡¢40K |
Actuator |
ZHB-22 |
ZHB-23 |
ZHB-34 |
ZHB-45 |
6.Pneumatic single seat control valve Ordering Information
1.DN
2.PN
3.Valve Connection
4.Actuators
5.Actuator mode of action
6.Process media and state
7.After the valve before the pressure valve pressure
8.Maximum, normal, minimum flow
9.Medium temperature
